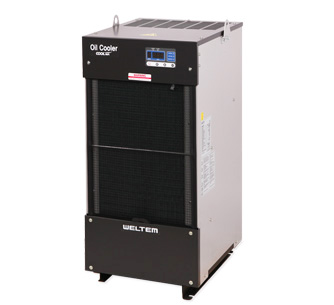

HOC-S Standard type

HOC-050S

HOC-050S
  • Cooling capacity 1,400Kcal/h (5600BTU)
  • Power source 3Ø 220V 50/60Hz
  • Power consumption 1.0kW
  • Rated current 4.5A
  • Pump 15ℓ/min
  • Motor 400W
  • Refrigerant R-410A/R-22
  • Temperature controller Electronic temperature controller
  • Oil temperature controling Room temperature adjusting type / The fixed temperature type
  • Range of temperature 10℃~45℃, -10℃~+10℃
  • Range of room temperature 10℃~45℃
  • Available Oil Lubricating oil, Hydraulic operating oil (10~40CST)
  • Weight 50kg
  • Dimension 385×446×664(WDH)mm
  • Discharge port of connection pipes PT 1/2 inch
  • Suction port of connection pipes PT 1/2 inch
