HOC-T Tank type

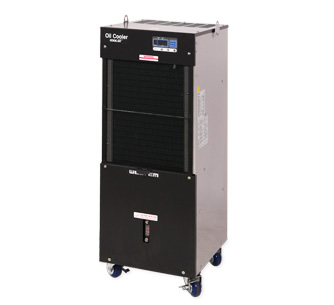

HOC-300T

HOC-300T
  • Cooling capacity 8,400Kcal/h (33300BTU)
  • Power source 3Ø 220V 50/60Hz
  • Power consumption 4.2kW
  • Rated current 18.8A
  • Pump 35ℓ/min
  • Motor 400W
  • Refrigerant R-410A
  • Temperature controller Electronic temperature controller
  • Oil temperature controling Room temperature adjusting type / The fixed temperature type
  • Range of temperature 10℃~45℃, -10℃~+10℃
  • Range of room temperature 10℃~45℃
  • Available Oil Lubricating oil, Hydraulic operating oil (10~40CST)
  • Weight 176kg
  • Dimension 526×555×1,269(WDH)mm
  • Discharge port of connection pipes PT 3/4 inch
  • Suction port of connection pipes PT 3/4 inch
