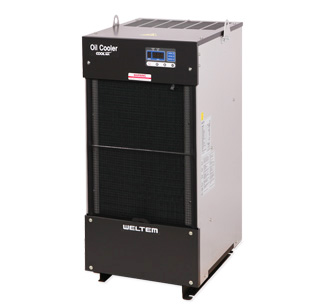

WOC-S Standard type

WOC-300S

WOC-300S
  • Cooling capacity 8300Kcal/h (32900BTU) - 9500Kcal/h (37600BTU)
  • Power source 3Ø 230V 50Hz - 3Ø 220V 60Hz
  • Power consumption 5.2kW - 5.6kW
  • Rated current 7.98A - 8.55A
  • Pump 25.2ℓ/min - 30.9ℓ/min
  • Motor 750W - 750W
  • Refrigerant R-410A
  • Temperature controller Electronic temperature controller
  • Oil temperature controling Room temperature adjusting type / The fixed temperature type
  • Range of temperature 10℃~45℃, -10℃~+10℃
  • Range of room temperature 10℃~45℃
  • Available Oil Lubricating oil, Hydraulic operating oil (10~40CST)
  • Weight 68kg
  • Dimension 780×800×1200(WDH)mm
  • Discharge port of connection pipes PT 3/4 inch
  • Suction port of connection pipes PT 3/4 inch
