[50Hz] Heatpump

[60Hz] Heatpump

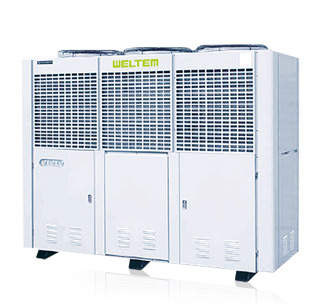

WHW-100

WHW-100

Capacity(Heating/cooling) 41kW/34kW
Power(Heating/cooling) 12.6kW/12kW
Current(Heating/cooling) 15.8A/15.1A
Main Power 3P4W,460V,60Hz
Control Power 1P,220V,60Hz
COMPRESSOR Scroll
Refrigerant R-410A
Connection 32A
Flow Rate 90 lpm
Dimension(LxWxH) 2200x1090x1985mm
Weight 680kg
Unit Control PLC
Display 7"touch monitor
Communication RS485
Rated heating capacity Load side outlet temperature 45°C, Ambient 7°C
Rated cooling capacity Load side outlet temperature 7°C, Ambient 35°C
