[50Hz] Heatpump

[60Hz] Heatpump

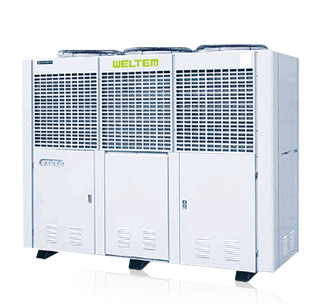

WHW-200

WHW-200

Capacity(Heating/cooling) 78.5kW/65.4kW
Power(Heating/cooling) 23kW/21.5kW
Current(Heating/cooling) 28.9A/27A
Main Power 3P4W,460V,60Hz
Control Power 1P,220V,60Hz
COMPRESSOR Scroll
Refrigerant R-410A
Connection 50A
Flow Rate 170 lpm
Dimension(LxWxH) 2650x1120x2278mm
Weight 1000kg
Unit Control PLC
Display 7"touch monitor
Communication RS485
Rated heating capacity Load side outlet temperature 45°C, Ambient 7°C
Rated cooling capacity Load side outlet temperature 7°C, Ambient 35°C
