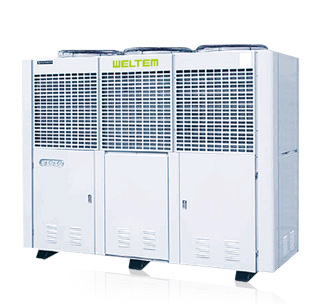

WHW-500

WHW-500

Capacity(Heating/cooling) 218.75kW/166kW
Power(Heating/cooling) 60.9kW/58kW
Current(Heating/cooling) 76.5A/72.8A
Main Power 3P4W,460V,60Hz
Control Power 1P,220V,60Hz
COMPRESSOR SCREW
Refrigerant R-407
Connection 65A
Flow Rate 450 lpm
Dimension(LxWxH) 2900x2150x2265mm
Weight 1800kg
Unit Control PLC
Display 7"touch monitor
Communication RS485
Rated heating capacity Load side outlet temperature 45°C, Ambient 7°C
Rated cooling capacity Load side outlet temperature 7°C, Ambient 35°C
